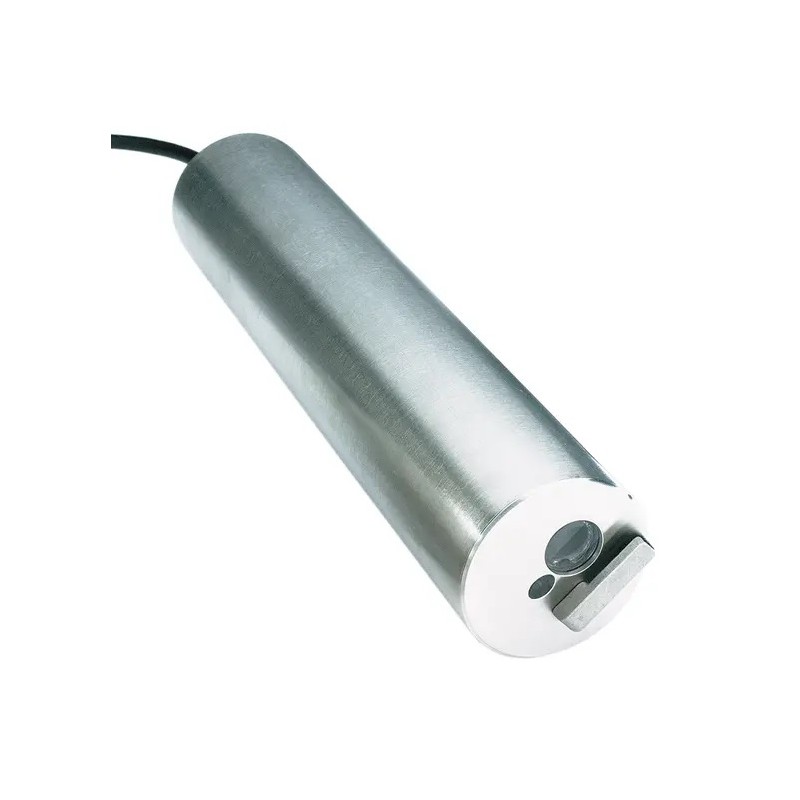

SONDE SOLITAX highline TURBIDITE (4000 NTU) MES (50 g/L), INS, INOX,

Specifications

Technical Attributes
Accuracy Turbidity up to 1000 NTU:
without calibration < 5% of the measured value ±0.01 NTU
with calibration < 1% of the measured value ±0.01 NTU
Automatic Wiper Yes
Body Material Stainless Steel
Cable Length 10 m (33 ft) (optional extension cables available)
Calibration Method Turbidity: Formazin or Stablcal Standard (at 800 NTU).
Suspended Solids: Sample specific, based on gravimetric TSS analysis with a correction factor procedure.
Certifications CE, MCERTS
Controller Sensor only
Controller Compatibility SC4500, SC1000, SC200
Diameter Sensor 60 mm
Flow Max. 3 m/s (the presence of air bubbles affects the measurement)
IP Rating IP68
Length 315 mm
Maintenance Interval 1 h/month
Material Optics carrier and sleeve: stainless steel 1.4571
Wiper arm: stainless steel 1.4581
Wiper rubber: silicone rubber (standard)
Optional: FKM/FPM (LZX578)
Wiper shaft: stainless steel 1.4571
Max. cable length Sensor-to-Controller 100
Measuring Principle Infrared Duo scattered light technique for color-independent
turbidity measurement Turbidity in accordance with
DIN EN ISO 7027 / TS equivalent DIN 38414
Model Solitax highline sc
Mounting Insertion
Operating Temperature Range 0 - 40 °C (32 - 104 °F)
Parameter High Range Suspended Solids, Turbidity
Pressure Range Stainless steel insertion sensor: <6 bar or <60 m
Range TSS content: 0.001 - 500 g/L; 0.001 - 500,000 mg/L (the upper range is dependent on the sample property)
Turbidity: 0.001 - 4000 NTU
Repeatability TSS content: < 3%|Turbidity: < 1%
Response Time T90 1 - 300 s adjustable
Special Notes Installation note:
Distance sensor-wall
> 50 cm (Turbidity)
Warranty 12 months
Weight Insertion stainless steel: 2.4 kg (5.29 lb.)
What's included? Turbidity/Suspended Solids probe, user manual
